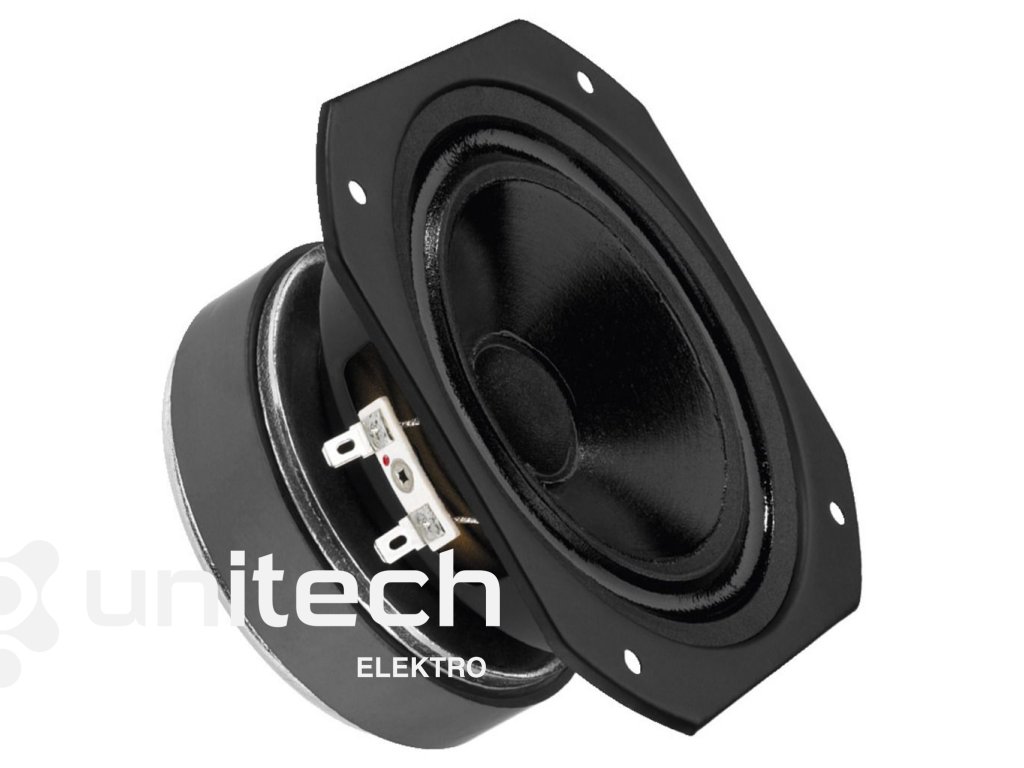

Stredotónový reproduktor MS-130, 80/40W, 8ohm, Hi-Fi
Kód: RE756Podrobný popis
Hi-fi stredový reproduktor, 40 W, 8 Ω Inverzný priestorový zvuk Potiahnutý kužeľ Nízka pohyblivá hmota pre optimálne impulzné správanie Pre kombinácie stability na vysokej úrovni
Parametre
| Impedance (Z) | 8 Ω |
| Frequency range | fx-8,000 Hz |
| Resonant frequency (fs) | 120 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 300/6,000Hz |
| Power rating (RMS) | 40 W |
| Peak music power output (MAX) | 80 W |
| SPL | 94 dB/W/m |
| Suspension compl. (Cms) | 0.44 mm/N |
| Moving mass (Mms) | 4 g |
| Mech. Q factor (Qms) | 5.23 |
| Electr. Q factor (Qes) | 1.06 |
| Total Q factor (Qts) | 0.88 |
| Equivalent volume (Vas) | 3 l |
| DC resistance (Re) | 6.1 Ω |
| Force factor (BxL) | 4.20 Tm |
| Voice coil induct. (Le) | 0.25 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 0.7 mm |
| Eff. cone area (Sd) | 70 cm2 |
| Magnet weight | 500 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 120 mm |
| Mounting depth | 67 mm |
| Dimensions | 135 x 135 x 70 mm |
| Width | 135 mm |
| Height | 135 mm |
| Depth | 70 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.3 kg |
| Packing unit | 1 |
| Type of speaker | 5.25" |
| Packing dimensions (W x H x L) | 0.135 x 0.085 x 0.135 m |
| Gross weight | 1.365 kg |
| Net weight | 1.31 kg |
Dodatočné parametre
| Kategória: | Stredotónové reproduktory |
|---|---|
| EAN: | 4007754016055 |
