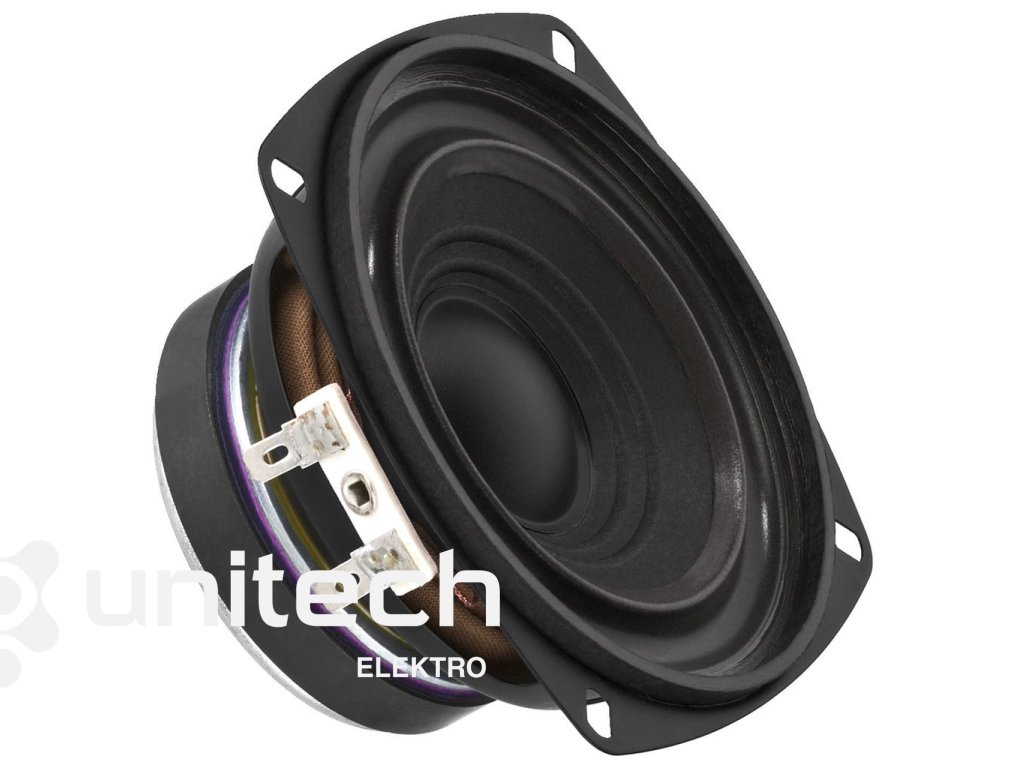

Univerzálny reproduktor SP-40, 8W, 8 ohm
Kód: RE380Podrobný popis
Parametre
| Impedance (Z) | 8 Ω |

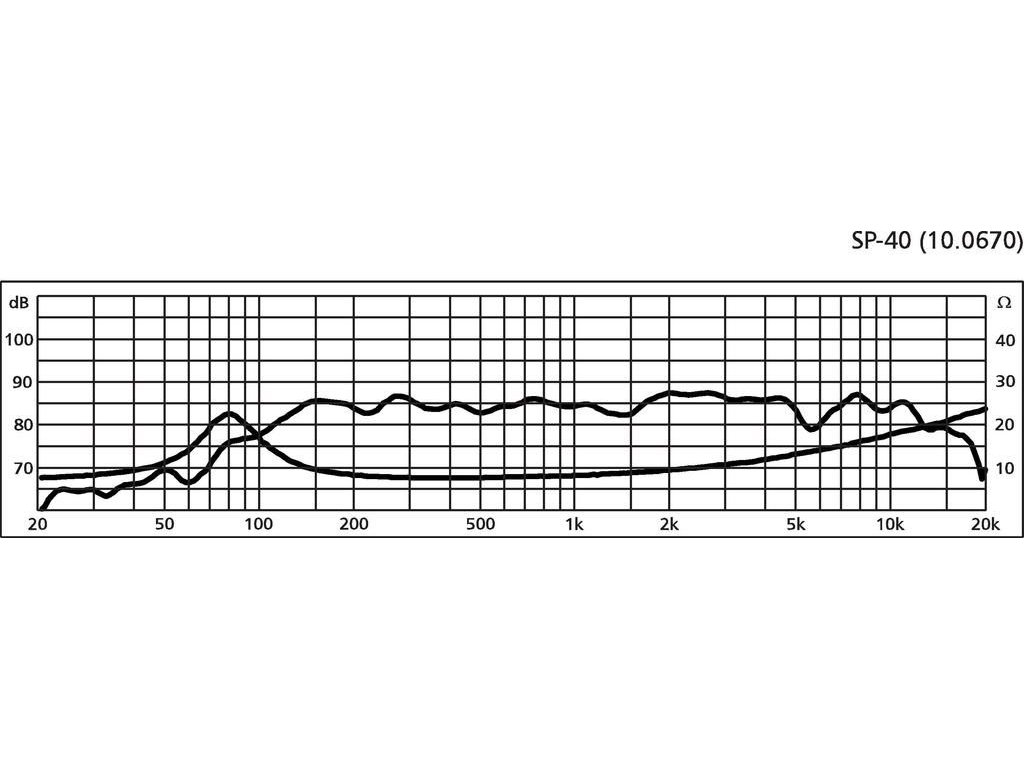

| Frequency range | f3-10,000 Hz |
| Resonant frequency (fs) | 80 Hz |
| Power rating (RMS) | 8 W |
| Peak music power output (MAX) | 16 W |
| Sensitivity | 86 dB/W/m |
| Suspension compl. (Cms) | 0.62 mm/N |
| Moving mass (Mms) | 5.7 g |
| Mech. Q factor (Qms) | 2.5 |
| Electr. Q factor (Qes) | 0.97 |
| Total Q factor (Qts) | 0.7 |
| Equivalent volume (Vas) | 2.6 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 4.33 Tm |
| Voice coil induct. (Le) | 0.2 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2 mm |
| Eff. cone area (Sd) | 55 cm2 |
| Magnet weight | 150 g |

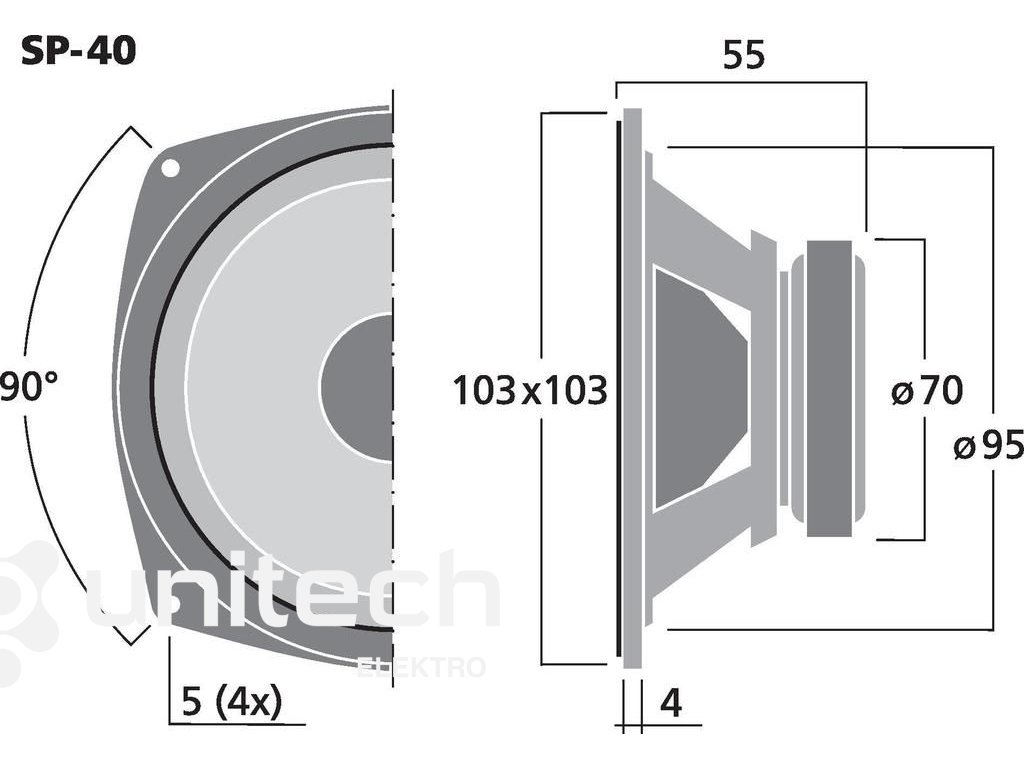

| Magnet diameter | Ø 70 mm |
| Mounting cutout | Ø 95 mm |
| Mounting depth | 51 mm |
| Dimensions | 103 x 103 x 55 mm |
| Width | 103 mm |
| Height | 103 mm |
| Depth | 55 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.46 kg |
| Packing unit | 1 |
| Type of speaker | 4" |
| Packing dimensions (W x H x L) | 0.115 x 0.065 x 0.115 m |
| Gross weight | 0.495 kg |
| Net weight | 0.46 kg |
Dodatočné parametre
| Kategória: | širokopásmové reproduktory |
|---|---|
| EAN: | 4007754024746 |
